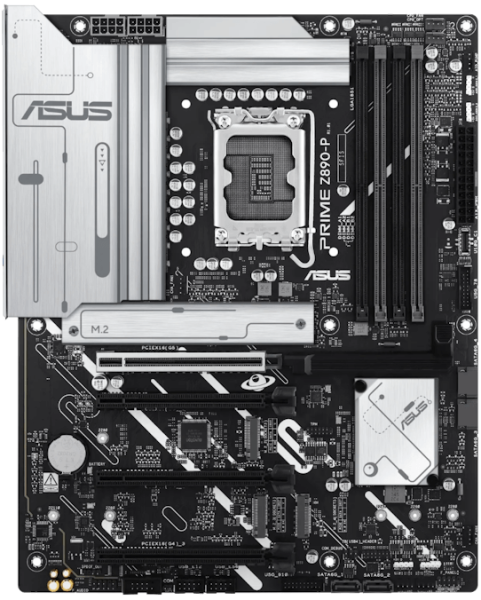

ASUS Prime Z890-P
Formfaktor ATX
Sockel Intel 1851 (LGA1851)
Chipsatz Intel Z890... mehr
Produktinformationen "ASUS Prime Z890-P"
- Formfaktor ATX
- Sockel Intel 1851 (LGA1851)
- Chipsatz Intel Z890
- CPU-Kompatibilität Core Ultra 200S, CPU-Kompatibilitätsliste
- RAM-Slots 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM)
- RAM-Taktfrequenz OC max. DDR5-8666
- RAM-Taktfrequenz nativ DDR5-5600 UDIMM/DDR5-6400 CUDIMM (Core Ultra 200S)
- ECC-Unterstützung nein
- Anschlüsse extern 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 mit DisplayPort 1.4 (20Gb/s, iGPU), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 (2.5GBase-T, Realtek), 3x 3.5mm Klinke (Realtek ALC897)
- PCIe-Slots 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (2x x4, 1x x1)
- M.2-Slots 1x M.2/M-Key (PCIe 5.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)
- Sonstige Schnittstellen 4x SATA 6Gb/s (Z890)
- Anschlüsse intern - USB 1x USB 3.1 Header Key-A (10Gb/s, 1x USB-C 3.1), 2x USB 3.0 Header 20-Pin (5Gb/s, 4x USB-A 3.0), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A 2.0)
- Anschlüsse intern - sonstige 1x ASUS Thunderbolt USB4 Header (TB(USB4)), 1x seriell-Header, 1x S/PDIF-Header, 1x TPM-Header
- Anschlüsse intern - Kühlung 2x CPU-Lüfter 4-Pin PWM, 4x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM
- Anschlüsse intern - Stromversorgung 1x 24-Pin ATX, 2x 8-Pin EPS12V
- Anschlüsse intern - Beleuchtung 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches USB BIOS Flashback (extern)
- Audio Realtek ALC897
- Grafik iGPU
- Wireless N/A
- RAID-Level 0/1/5/10 (Z890)
- VRM-Design 14+1+2+1, 15 virtuelle CPU-Phasen (2x7+1), 8 reale CPU-Phasen (7+1)
- MOSFETs VCORE 14x 80A
- MOSFETs SOC/VCCGT 1x 80A
- MOSFETs VDD_MISC/VCCSA/VCCAUX 2x 80A
- MOSFETs VNNAON 1x 80A
- Beleuchtung N/A
- BIOS 1x 32MB (256Mb)
- Besonderheiten Audio+solid capacitors, I/O-Blende integriert, White Build-kompatibel (PCB primär schwarz), 1x M.2-Passivkühler
