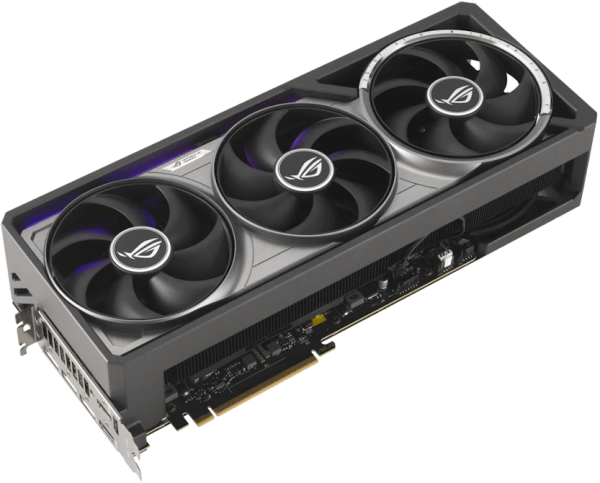

ASUS GeForce RTX 5090 ROG Astral OC 32GB GDDR7

Modell NVIDIA GeForce RTX 5090
Speicher 32GB GDDR7, 512bit, 28Gbps, 1750MHz, 1792GB/s... mehr
Produktinformationen "ASUS GeForce RTX 5090 ROG Astral OC 32GB GDDR7"
- Modell NVIDIA GeForce RTX 5090
- Speicher 32GB GDDR7, 512bit, 28Gbps, 1750MHz, 1792GB/s
- Takt Basis 2017MHz (Standard-Profil)
- Takt Boost 2580MHz (Standard-Profil), 2610MHz (OC-Profil)
- Übertaktung +203MHz Boost (OC-Profil), +173MHz Boost (Standard-Profil)
- Kühlung 4x Axial-Lüfter mit 0dB-Zero-Fan-Modus
- TDP/TGP 575W (NVIDIA)
- AI-Rechenleistung (INT8) >1676 TOPS
- GPU-Rechenleistung 113.59 TFLOPS (FP16), 113.59 TFLOPS (FP32), 1.77 TFLOPS (FP64)
- Stromanschlüsse 1x 12V-2x6 (via Adapter: 4x 8-Pin PCIe)
- Anschlüsse 2x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- Anbindung PCIe 5.0 x16
- Besonderheiten AI-Beschleunigung, Taktprofile, LED-Beleuchtung (RGB), Backplate, Lüftersteuerung (2x 4-Pin), Dual BIOS Switch, Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
- Gesamthöhe Quad Slot (3.8 Slots)
- Abmessungen 357.6x149.3x76mm (LxBxH)
- Bauform PCIe-Karte (full height)
- Slotblende full height
- Chip-Daten
- Chip-Architektur Blackwell (ab 2025/Q1)
- Chip-Bezeichnung GB202-300-A1
- Chip-Konfiguration 170SM (21760SP / 680TMU / 192ROP), 170 RT Cores, 680 Tensor Cores, 88MiB L2-Cache
- Chip-Fertigung TSMC 4nm
- Chip-Größe 750mm², monolithisch, 92.2 Mrd. Transistoren
- Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 418 TFLOPS), NVIDIA Tensor (5th Gen, 1676 TOPS), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine 3x NVENC (9th Gen, max. Sessions: 8), 2x NVDEC (6th Gen), Info
- Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
VGA_Stromanschluss: | 12VHPWR |
VGA_GPU-Hersteller: | NVIDIA |
Farbgebung: | schwarz |
VGA_Länge: | 360 |
VGA_Grafikprozessor: | GeForce RTX 5090 |
VGA_Erforderliche Systemleistung (in Watt): | 1000 |
