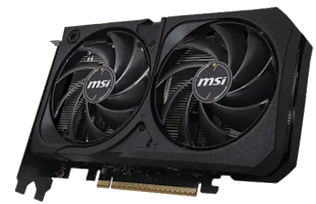

MSI GeForce RTX 5050 8G Shadow 2X OC
Modell NVIDIA GeForce RTX 5050
Speicher 8GB GDDR6, 128bit, 14Gbps, 1750MHz, 224GB/s
Takt... mehr
Produktinformationen "MSI GeForce RTX 5050 8G Shadow 2X OC"
- Modell NVIDIA GeForce RTX 5050
- Speicher 8GB GDDR6, 128bit, 14Gbps, 1750MHz, 224GB/s
- Takt Basis 2317MHz (Standard-Profil)
- Takt Boost 2602MHz (Standard-Profil), 2617MHz (OC-Profil)
- Übertaktung +45MHz Boost (OC-Profil), +30MHz Boost (Standard-Profil)
- Kühlung 2x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP 130W (NVIDIA), max. 130W (MSI)
- Stromanschlüsse 1x 8-Pin PCIe
- Anschlüsse 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- Anbindung PCIe 5.0 x16 (x8)
- Besonderheiten Backplate, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), NVIDIA GeForce SFF-Ready
- Gesamthöhe Dual Slot
- Abmessungen 197x120x40mm (LxBxH), Gewicht: 478g
- Bauform PCIe-Karte (full height)
- Slotblende full height
- AI-Rechenleistung (dense) 210.5 TOPS (FP4), 105.25 TOPS (FP8), 52.62 TOPS (FP16)
- AI-Rechenleistung (sparse) 421 TOPS (FP4), 210.5 TOPS (FP8), 105.24 TOPS (FP16)
- GPU-Rechenleistung 13.40 TFLOPS (FP16), 13.40 TFLOPS (FP32), 0.21 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur Blackwell (ab 2025/Q1)
- Chip-Bezeichnung GB207 (GB207-300-A1)
- Chip-Ausbau Vollausbau (20/20 SM)
- Chip-Konfiguration 20 SM (2560 Shader / 80 TMUs / 32 ROPs), 20 RT Cores, 80 Tensor Cores, 32MiB L2-Cache
- Chip-Fertigung TSMC N5P (5nm) [NVIDIA 4N]
- Chip-Größe 149mm², monolithisch, 16.9 Mrd. Transistoren
- Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 40 TFLOPS), NVIDIA Tensor (5th Gen, 52.62 TOPS), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine 1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
- Encoding AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:2:2 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:2:2 / YUV 4:4:4 / Lossless)
- Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:2:2 / 10bit 4:2:2 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
