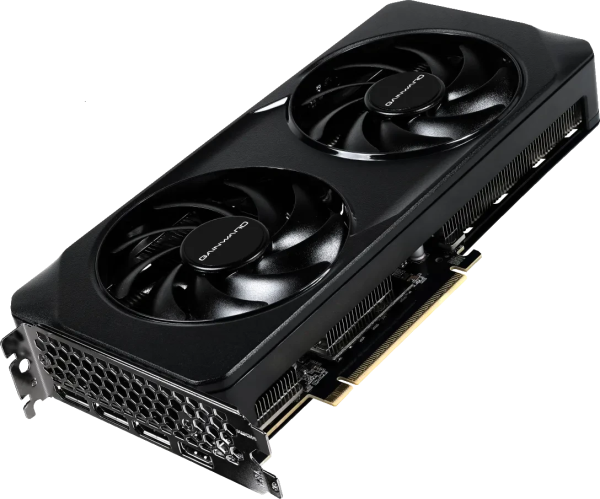

Gainward GeForce RTX 5060 Ti Ghost OC, 16GB GDDR7, HDMI, 3x DP
Modell NVIDIA GeForce RTX 5060 Ti
Speicher 16GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s... mehr
Produktinformationen "Gainward GeForce RTX 5060 Ti Ghost OC, 16GB GDDR7, HDMI, 3x DP"
- Modell NVIDIA GeForce RTX 5060 Ti
- Speicher 16GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s
- Takt Basis 2407MHz
- Takt Boost 2632MHz
- Übertaktung +60MHz Boost
- Kühlung 2x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus (bis 60°C)
- TDP/TGP 180W (NVIDIA), max. 180W (Gainward)
- Stromanschlüsse 1x 8-Pin PCIe
- Anschlüsse 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- Anbindung PCIe 5.0 x16 (x8)
- Besonderheiten Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe Dual Slot
- Abmessungen 262.1x126.3x40.1mm (LxBxH)
- Bauform PCIe-Karte (full height)
- Slotblende full height
- AI-Rechenleistung (dense) 379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)
- AI-Rechenleistung (sparse) 759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)
- GPU-Rechenleistung 24.26 TFLOPS (FP16), 24.26 TFLOPS (FP32), 0.38 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur Blackwell (ab 2025/Q1)
- Chip-Bezeichnung GB206 (GB206-300-A1)
- Chip-Ausbau Vollausbau (36/36 SM)
- Chip-Konfiguration 36 SM (4608 Shader / 144 TMUs / 48 ROPs), 36 RT Cores, 144 Tensor Cores, 32MiB L2-Cache
- Chip-Fertigung TSMC N5P [NVIDIA 4N]
- Chip-Größe 181mm², monolithisch, 21.9 Mrd. Transistoren
- Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine 1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
- Encoding AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:2:2 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:2:2 / YUV 4:4:4 / Lossless)
- Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:2:2 / 10bit 4:2:2 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung -
- Veröffentlichung (Serie) 16.04.2025, Ankündigung: 15.04.2025
- Grafik NVIDIA GeForce RTX 5060 Ti - 16GB GDDR7 - Desktop
