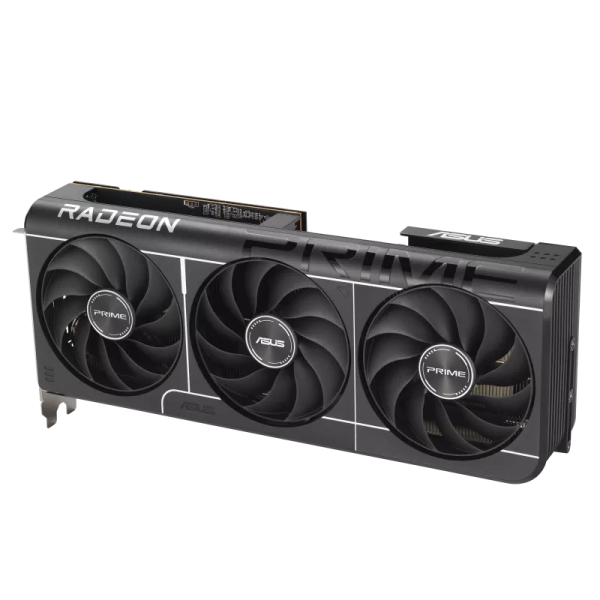

ASUS Prime Radeon RX 9070 OC EVO 16GB GDDR6
Modell AMD Radeon RX 9070
Speicher 16GB GDDR6, 256bit, 20Gbps, 2500MHz, 640GB/s
Takt... mehr
Produktinformationen "ASUS Prime Radeon RX 9070 OC EVO 16GB GDDR6"
- Modell AMD Radeon RX 9070
- Speicher 16GB GDDR6, 256bit, 20Gbps, 2500MHz, 640GB/s
- Takt Basis unbekannt
- Takt Boost 2120-2590MHz (Standard-Profil), 2140-2610MHz (OC-Profil)
- Übertaktung +90MHz Boost (OC-Profil), +70MHz Boost (Standard-Profil), +70MHz Game (OC-Profil), +50MHz Boost (Standard-Profil)
- Kühlung 3x Axial-Lüfter (92mm) mit 0dB-Zero-Fan-Modus (bis 55°C)
- TDP/TGP 220W (AMD)
- Stromanschlüsse 2x 8-Pin PCIe
- Anschlüsse 1x HDMI 2.1b, 3x DisplayPort 2.1a UHBR13.5
- Anbindung PCIe 5.0 x16
- Besonderheiten Backplate, Dual BIOS Switch, Taktprofile (Default Mode/OC Mode), Phase-Change GPU Thermal Pad Wärmeleitmaterial
- Gesamthöhe Triple Slot (2.5 Slots)
- Abmessungen 304x126x50mm (LxBxH)
- Bauform PCIe-Karte (full height)
- Slotblende full height
- AI-Rechenleistung (dense) 289 TOPS (FP8), 578 TOPS (INT4), 289 TOPS (INT8)
- AI-Rechenleistung (sparse) 578 TOPS (FP8), 1156 TOPS (INT4), 578 TOPS (INT8)
- GPU-Rechenleistung 74.83 TFLOPS (FP16), 37.42 TFLOPS (FP32), 1.17 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur RDNA 4 (ab 2025/Q1)
- Chip-Bezeichnung Navi 48 (Navi 48 XT)
- Chip-Ausbau 87.5% aktive Recheneinheiten (56/64 CU)
- Chip-Konfiguration 56 CU (3584 Shader / 224 TMUs / 128 ROPs), 56 RT Cores, 8MiB L2-Cache
- Chip-Fertigung TSMC N4P
- Chip-Größe 357mm², monolithisch, 53.9 Mrd. Transistoren
- Chip-Funktionen Raytracing, AMD Infinity Cache (64MiB), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine VCN 5.0, Info
- Encoding AV1, H.265, H.264
- Decoding AV1, H.265, H.264
