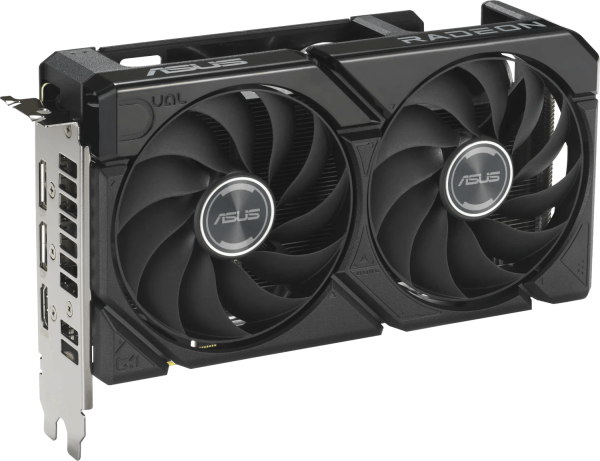

ASUS Dual Radeon RX 9060, 8GB GDDR6, HDMI, 2x DP
Modell AMD Radeon RX 9060
Speicher 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
Takt Basis... mehr
Produktinformationen "ASUS Dual Radeon RX 9060, 8GB GDDR6, HDMI, 2x DP"
- Modell AMD Radeon RX 9060
- Speicher 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
- Takt Basis 1700MHz (Standard-Profil)
- Takt Boost 2400-2990MHz (Standard-Profil), 2410-3000MHz (OC-Profil)
- Übertaktung +10MHz Boost (OC-Profil), +10MHz Game (OC-Profil)
- Kühlung 2x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus (bis 55°C)
- TDP/TGP 132W (AMD)
- Stromanschlüsse 1x 8-Pin PCIe
- Anschlüsse 1x HDMI 2.1b, 2x DisplayPort 2.1a UHBR13.5
- Anbindung PCIe 5.0 x16
- Besonderheiten Backplate, Dual BIOS Switch, Taktprofile (Default Mode/OC Mode)
- Gesamthöhe Triple Slot (2.5 Slots)
- Abmessungen 202x120x49mm (LxBxH)
- Bauform PCIe-Karte (full height)
- Slotblende full height
- AI-Rechenleistung (dense) 172 TOPS (FP8), 344 TOPS (INT4), 172 TOPS (INT8)
- AI-Rechenleistung (sparse) 344 TOPS (FP8), 688 TOPS (INT4), 344 TOPS (INT8)
- GPU-Rechenleistung 43.01 TFLOPS (FP16), 21.50 TFLOPS (FP32), 0.67 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur RDNA 4 (ab 2025/Q1)
- Chip-Bezeichnung Navi 44 (Navi 44)
- Chip-Ausbau 87.5% aktive Recheneinheiten (28/32 CU)
- Chip-Konfiguration 28CU (1792SP/112TMU/64ROP), 28 RT-Cores, 4MiB L2-Cache, 32MiB L3-Cache
- Chip-Fertigung TSMC N4P
- Chip-Größe 199mm², monolithisch, 29.7 Mrd. Transistoren
- Chip-Funktionen Raytracing, AMD Infinity Cache (32MiB), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine VCN 5.0, Info
- Encoding AV1, H.265, H.264
- Decoding AV1, H.265, H.264
