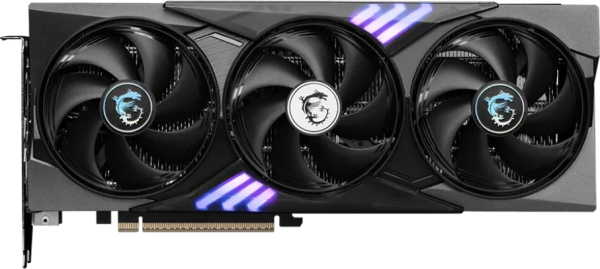

MSI GeForce RTX 5060 Ti 8G Gaming Trio OC, 8GB GDDR7, HDMI, 3x DP
Modell NVIDIA GeForce RTX 5060 Ti
Speicher 8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s... mehr
Produktinformationen "MSI GeForce RTX 5060 Ti 8G Gaming Trio OC, 8GB GDDR7, HDMI, 3x DP"
- Modell NVIDIA GeForce RTX 5060 Ti
- Speicher 8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s
- Takt Basis 2407MHz (Standard-Profil), 2407MHz (OC-Profil)
- Takt Boost 2647MHz (Standard-Profil), 2662MHz (OC-Profil)
- Übertaktung +90MHz Boost (OC-Profil), +75MHz Boost (Standard-Profil)
- Kühlung 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP 180W (NVIDIA), max. 180W (MSI)
- Stromanschlüsse 1x 12V-2x6 (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- Anbindung PCIe 5.0 x16 (x8)
- Besonderheiten Beleuchtung (RGB), Backplate, Dual BIOS Switch, AI-Beschleunigung, Taktprofile (Default Mode/Extreme Performance), NVIDIA GeForce SFF-Ready, Grafikkarten-Halterung
- Gesamthöhe Dual Slot
- Abmessungen 300x125x44mm (LxBxH), Gewicht: 844g
- Bauform PCIe-Karte (full height)
- Slotblende full height
- AI-Rechenleistung (dense) 379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)
- AI-Rechenleistung (sparse) 759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)
- GPU-Rechenleistung 24.88 TFLOPS (FP16), 24.88 TFLOPS (FP32), 0.39 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur NVIDIA Blackwell (ab 2025/Q1)
- Chip-Bezeichnung GB206 (GB206-300-A1)
- Chip-Ausbau Vollausbau (36/36 SM)
- Chip-Konfiguration 36SM (4608SP/144TMU/48ROP), 36 RT-Cores, 144 Tensor-Cores, 32MiB L2-Cache
- Chip-Fertigung TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe 181mm², monolithisch, 21.9 Mrd. Transistoren
- Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3
- API-Unterstützung DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine 1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
- Encoding AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:2:2 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:2:2 / YUV 4:4:4 / Lossless)
- Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:2:2 / 10bit 4:2:2 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
