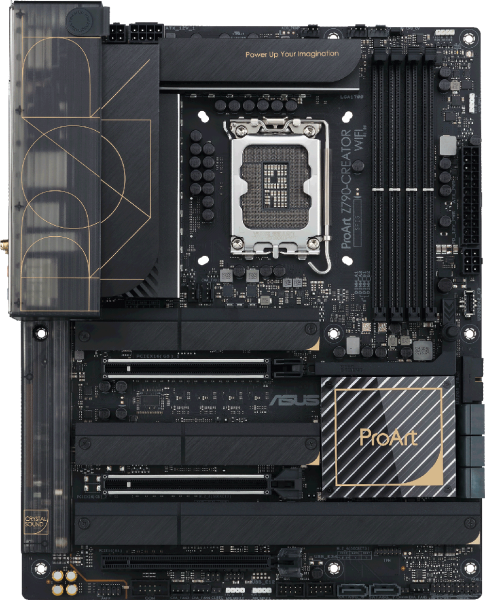

ASUS ProArt Z790-Creator WIFI
![ASUS ProArt Z790-Creator WIFI](/themes/Frontend/Responsive/frontend/_public/src/img/no-picture.jpg)
Formfaktor ATX
Sockel Intel 1700
Chipsatz Intel Z790
CPU-Kompatibilität Core i-14000 ,... mehr
Produktinformationen "ASUS ProArt Z790-Creator WIFI"
- Formfaktor ATX
- Sockel Intel 1700
- Chipsatz Intel Z790
- CPU-Kompatibilität Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
- RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 192GB (UDIMM)
- Erweiterungsslots 2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 2x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, belegt mit WiFi+BT-Modul)
- Anschlüsse extern 1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 (40Gb/s, Intel JHL8540, iGPU), 6x USB-A 3.1 (10Gb/s), 1x 10GBase-T (Marvell AQtion), 1x 2.5GBase-T (Intel I226-V), 5x Klinke, 2x DisplayPort-In 1.4, 2x Antennenanschluss RP-SMA
- Anschlüsse intern 1x USB-C 3.2 Key-A Header (20Gb/s, PD, max. 60W, QC4+), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), 8x SATA 6Gb/s (Z790), 1x seriell, 1x TPM-Header, 1x Chassis Intrusion-Header
- Header Kühlung 2x CPU-Lüfter 4-Pin, 5x Lüfter 4-Pin, 1x AIO-Pumpe 4-Pin, 1x Thermal-Sensor
- Header Beleuchtung 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
- Buttons/Switches Clear-CMOS-Button (intern), USB BIOS Flashback (extern)
- Audio 7.1 (Realtek ALC1220)
- Grafik iGPU
- Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
- RAID-Level 0/1/5/10 (Z790)
- Multi-GPU N/A
- Stromanschlüsse 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
- VRM 17 virtuelle Phasen (16+1), 9 reale Phasen (8+1), PWM-Controller: ASP2100R (RT3628AE, max. 9 Phasen)
- MOSFETs CPU (VCORE) 16x 50A MP86992
- MOSFETs SoC (VCCGT) 1x 50A MP86992
- Beleuchtung N/A
- BIOS 1x 32MB (256Mb)
- Besonderheiten Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), 4x M.2-Passivkühler, I/O-Blende integriert, Onboard TPM 2.0 Unterstützung (Intel PTT)
