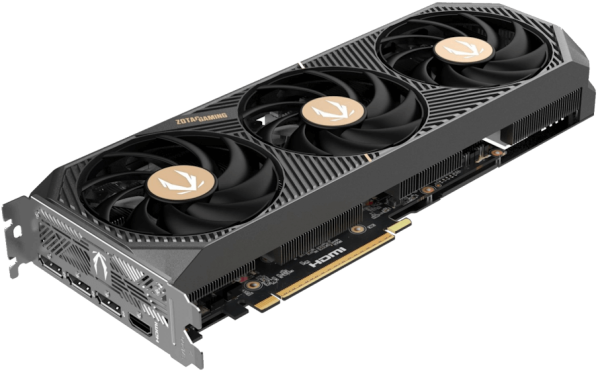

Zotac RTX 5070 TI Solid SFF 16GB GDDR7 HDMI 3xDP

Zotac RTX 5070 TI Solid SFF 16GB GDDR7 HDMI 3xDP
Speicher 16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/​s Takt Basis2300MHz Takt... mehr
Produktinformationen "Zotac RTX 5070 TI Solid SFF 16GB GDDR7 HDMI 3xDP"
  • Speicher 16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/​s
  • Takt Basis2300MHz
  • Takt Boost 2452MHz
  • Übertaktung +2MHz Boost
  • Kühlung 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
  • TDP/TGP 300W (NVIDIA), max. 300W (Zotac)
  • AI-Rechenleistung (INT8) >703 TOPS
  • GPU-Rechenleistung 43.94 TFLOPS (FP16), 43.94 TFLOPS (FP32), 0.69 TFLOPS (FP64)
  • Stromanschlüsse 1x 12V-2x6 (via Adapter: 2x 8-Pin PCIe)
  • Anschlüsse 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
  • Anbindung PCIe 5.0 x16
  • Besonderheiten AI-Beschleunigung, LED-Beleuchtung (RGB), Backplate, NVIDIA GeForce SFF-Ready, Grafikkarten-Halterung
  • Gesamthöhe Dual Slot
  • Abmessungen 304.4x115.8x41.6mm (LxBxH)
  • Bauform PCIe-Karte (full height)
  • Slotblende full height
  • Chip-Architektur Blackwell (ab 2025/​Q1)
  • Chip-Bezeichnung GB203-300
  • Chip-Konfiguration 70SM (8960SP /​ 280TMU /​ 96ROP), 70 RT Cores, 280 Tensor Cores, 64MiB L2-Cache
  • Chip-Fertigung TSMC 5nm "NVIDIA 4N"
  • Chip-Größe 378mm², monolithisch, 45.6 Mrd. Transistoren
  • Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 133 TFLOPS), NVIDIA Tensor (5th Gen, 703 TOPS), HDCP 2.3
  • API-Unterstützung DirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8
  • Transcoding-Engine 2x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
  • Encoding AV1, H.265 (4K YUV 4:2:0 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:4:4 /​ Lossless)
  • Decoding AV1 (8bit /​ 10bit), H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4), H.264, VP9 (8bit /​ 10bit /​ 12bit), VP8, VC-1, MPEG-2, MPEG-1
