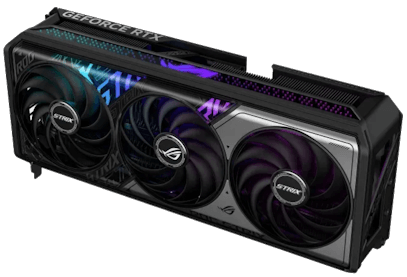

ASUS ROG Strix GeForce RTX 5070 Ti OC, 16GB GDDR7

ASUS ROG Strix GeForce RTX 5070 Ti OC, 16GB GDDR7
Modell NVIDIA GeForce RTX 5070 Ti Speicher 16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/​s... mehr
Produktinformationen "ASUS ROG Strix GeForce RTX 5070 Ti OC, 16GB GDDR7"
  • Modell NVIDIA GeForce RTX 5070 Ti
  • Speicher 16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/​s
  • Takt Basis 2300MHz (Standard-Profil)
  • Takt Boost 2602MHz (Standard-Profil), 2625MHz (OC-Profil)
  • Übertaktung +175MHz Boost (OC-Profil), +152MHz Boost (Standard-Profil)
  • Kühlung 3x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
  • TDP/TGP 300W (NVIDIA)
  • Stromanschlüsse 1x 12V-2x6 (via Adapter: 3x 8-Pin PCIe)
  • Anschlüsse 2x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
  • Besonderheiten Beleuchtung (RGB), Backplate, Dual BIOS Switch, AI-Beschleunigung, Taktprofile (Default Mode/​OC Mode), Grafikkarten-Halterung (ASUS ROG Graphics Card Holder)
  • Gesamthöhe Quad Slot (3.275 Slots)
  • Abmessungen 332x147.3x64mm (LxBxH)
  • Bauform PCIe-Karte (full height)
  • Slotblende full height
  • AI-Rechenleistung (dense) 703 TOPS (FP4), 351.5 TOPS (FP8), 175.75 TOPS (FP16)
  • AI-Rechenleistung (sparse) 1406 TOPS (FP4), 703 TOPS (FP8), 351.5 TOPS (FP16)
  • GPU-Rechenleistung 47.04 TFLOPS (FP16), 47.04 TFLOPS (FP32), 0.74 TFLOPS (FP64)
  • Chip-Daten
  • Chip-Architektur Blackwell (ab 2025/​Q1)
  • Chip-Bezeichnung GB203 (GB203-300-A1), 83.3% aktive Recheneinheiten (70/​84 SM)
  • Chip-Konfiguration 70 SM (8960 Shader /​ 280 TMUs /​ 96 ROPs), 70 RT Cores, 280 Tensor Cores, 48MiB L2-Cache
  • Chip-Fertigung TSMC N5P (5nm) [NVIDIA 4N]
  • Chip-Größe 378mm², monolithisch, 45.6 Mrd. Transistoren
  • Chip-Funktionen Raytracing (4th Gen NVIDIA RTX, 133 TFLOPS), NVIDIA Tensor (5th Gen, 175.75 TOPS), HDCP 2.3
  • API-Unterstützung DirectX 12 Ultimate (12_2) /​ CUDA 12.8 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.8
  • Transcoding-Engine 2x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
  • Encoding AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 /​ 4K YUV 4:2:2 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:2:2 /​ YUV 4:4:4 /​ Lossless)
  • Decoding AV1 (8bit /​ 10bit), H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:2:2 /​ 10bit 4:2:2 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4), H.264 (8bit 4:2:0, 10bit 4:2:0, 8bit 4:2:2, 10bit 4:2:2), VP9 (8bit /​ 10bit /​ 12bit), VP8, VC-1, MPEG-2, MPEG-1
